Análisis básico de memoria RAM en Linux
Diferencia entre Linux y Windows
Como comentabamos en la sección anterior sobre el análisis de memoria RAM en linux, a diferencia de windows la disposción de los elementos de la memoria RAM es diferente dependiendo del kernel y la versión base de linux que el sistema esté utilizando.
En esta sección vamos a dentrarnos en el análisis “básico” de la memoria RAM en linux pero sin indagar en lso detalles de mapeo según la versión de linux que esté utilizando.
Para ello os recomiendo visitar el post donde explicamos más profundamente el método para crear nuestro propios mapas de memoria RAM en linux.
Preparación
Instalación de Volatility 3
1
2
3
4
5
6
7
git clone https://github.com/volatilityfoundation/volatility3.git
sudo apt install -y python3-pip
cd volatility3
python3 vol.py -h
Instalción de Volatility 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
sudo apt update
sudo apt install python2.7 python2.7-dev python3 git -y
git clone https://github.com/volatilityfoundation/volatility.git
wget https://bootstrap.pypa.io/pip/2.7/get-pip.py
sudo python2.7 get-pip.py
pip2 install distorm3 yara-python pycrypto
cd volatility/
python2 vol.py -h OR python2.7 vol.py -h
Dump de memoria RAM
Para esta sección el dump de memoria utilizado es el siguiente:
Vamos a comenzar con Volatility 2.
Volatility 2
Como ya indicamos anteriormente en esta sección vamos a omitir la selección y extracción de mapas de memoria vamos a asumir que ya realizamos ese proceso.
Asumiendo lo anterior y con el mapa de memoria RAM ubicado en /volatility/plugins/overlays/linux/debian-XXXX-memmap.zip, continuamos con la ejecución del vol.py
1
2
3

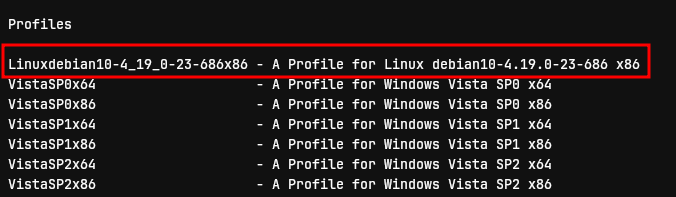

python2 vol.py --info
Linuxdebian10-4_19_0-23-686x86
Nos indicará qué mapas tenemos cargados.
Análisis de procesos
linux_pslist
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_pslist
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
Offset Name Pid PPid Uid Gid DTB Start Time
---------- -------------------- --------------- --------------- --------------- ------ ---------- ----------
0xf491cb40 systemd 1 0 0 0 0x34a8e000 0
0xf4918ac0 kthreadd 2 0 0 0 ---------- 0
0xf4919580 rcu_gp 3 2 0 0 ---------- 0
0xf491b5c0 rcu_par_gp 4 2 0 0 ---------- 0
0xf4918000 kworker/0:0H 6 2 0 0 ---------- 0
0xf491a040 mm_percpu_wq 8 2 0 0 ---------- 0
0xf491e0c0 ksoftirqd/0 9 2 0 0 ---------- 0
0xf491eb80 rcu_sched 10 2 0 0 ---------- 0
0xf491ab00 rcu_bh 11 2 0 0 ---------- 0
0xf493cb40 migration/0 12 2 0 0 ---------- 0
0xf493b5c0 cpuhp/0 14 2 0 0 ---------- 0
0xf493c080 cpuhp/1 15 2 0 0 ---------- 0
0xf4938000 migration/1 16 2 0 0 ---------- 0
0xf493d600 ksoftirqd/1 17 2 0 0 ---------- 0
0xf493e0c0 kworker/1:0H 19 2 0 0 ---------- 0
0xf493eb80 kdevtmpfs 20 2 0 0 ---------- 0
0xf493ab00 netns 21 2 0 0 ---------- 0
0xf49c8000 kauditd 22 2 0 0 ---------- 0
0xf49cd600 khungtaskd 23 2 0 0 ---------- 0
0xf49ca040 oom_reaper 24 2 0 0 ---------- 0
0xf49ce0c0 writeback 25 2 0 0 ---------- 0
0xf49ceb80 kcompactd0 26 2 0 0 ---------- 0
0xf49cab00 ksmd 27 2 0 0 ---------- 0
0xf49ccb40 khugepaged 28 2 0 0 ---------- 0
0xf49c8ac0 crypto 29 2 0 0 ---------- 0
0xf49c9580 kintegrityd 30 2 0 0 ---------- 0
0xf49cb5c0 kblockd 31 2 0 0 ---------- 0
0xf49cc080 edac-poller 32 2 0 0 ---------- 0
0xf4a50ac0 devfreq_wq 33 2 0 0 ---------- 0
0xf4a51580 watchdogd 34 2 0 0 ---------- 0
0xf4a54080 kswapd0 36 2 0 0 ---------- 0
0xf4be8ac0 kthrotld 54 2 0 0 ---------- 0
0xf4beab00 ipv6_addrconf 55 2 0 0 ---------- 0
0xf64a2040 kstrp 65 2 0 0 ---------- 0
0xf4beeb80 ata_sff 101 2 0 0 ---------- 0
0xf4a560c0 scsi_eh_0 102 2 0 0 ---------- 0
0xf4be8000 scsi_eh_1 103 2 0 0 ---------- 0
0xf4becb40 scsi_tmf_1 104 2 0 0 ---------- 0
0xf4beb5c0 scsi_eh_2 105 2 0 0 ---------- 0
0xf64b4b40 scsi_tmf_2 106 2 0 0 ---------- 0
0xf4a55600 scsi_tmf_0 108 2 0 0 ---------- 0
0xf6664080 kworker/1:1H 113 2 0 0 ---------- 0
0xf6662b00 kworker/0:2 136 2 0 0 ---------- 0
0xf6666b80 kworker/0:1H 138 2 0 0 ---------- 0
0xf6660ac0 kworker/u5:0 166 2 0 0 ---------- 0
0xf6664b40 jbd2/sda1-8 168 2 0 0 ---------- 0
0xf6660000 ext4-rsv-conver 169 2 0 0 ---------- 0
0xf4a52040 systemd-journal 202 1 0 0 0x35d40000 0
0xf5d0c080 systemd-udevd 219 1 0 0 0x35dc0000 0
0xf5d09580 systemd-timesyn 241 1 101 102 0x35f70000 0
0xf5d08000 ttm_swap 262 2 0 0 ---------- 0
0xf5d0b5c0 irq/18-vmwgfx 263 2 0 0 ---------- 0
0xf64a1580 systemd-logind 330 1 0 0 0x35915000 0
0xf64a6b80 rsyslogd 332 1 0 0 0x35914000 0
0xf64a2b00 dbus-daemon 335 1 104 110 0x35e7a000 0
0xf64a60c0 cron 339 1 0 0 0x33870000 0
0xf38eab00 dhclient 348 1 0 0 0x35b27000 0
0xf64a0000 sshd 350 1 0 0 0x34b8f000 0
0xf64a4b40 login 351 1 0 0 0x339ba000 0
0xf5d0ab00 systemd 374 1 0 0 0x33b1a000 0
0xf5d08ac0 (sd-pam) 375 374 0 0 0x33b0e000 0
0xf64a35c0 bash 385 351 0 0 0x33bf4000 0
0xf5d0d600 sshd 392 350 0 0 0x3347e000 0
0xf64a5600 systemd 395 1 1000 1000 0x33843000 0
0xf4a52b00 (sd-pam) 396 395 1000 1000 0x3349c000 0
0xf3561580 sshd 409 392 1000 1000 0x33592000 0
0xf35660c0 bash 410 409 1000 1000 0x33466000 0
0xf327a040 su 606 410 1000 1000 0x33753000 0
0xf3560000 bash 607 606 0 0 0x33727000 0
0xf4a56b80 kworker/u4:0 633 2 0 0 ---------- 0
0xf4938ac0 kworker/0:1 8912 2 0 0 ---------- 0
0xf4a50000 kworker/1:0 10483 2 0 0 ---------- 0
0xf4a535c0 kworker/u4:2 10538 2 0 0 ---------- 0
0xf493a040 kworker/1:1 10585 2 0 0 ---------- 0
0xf6665600 kworker/u4:1 10597 2 0 0 ---------- 0
0xf66635c0 kworker/1:2 10603 2 0 0 ---------- 0
0xf3440000 insmod 11218 607 0 0 0x3633d000 0
linux_psaux
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_pslist
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
Pid Uid Gid Arguments
1 0 0 /sbin/init
2 0 0 [kthreadd]
3 0 0 [rcu_gp]
4 0 0 [rcu_par_gp]
6 0 0 [kworker/0:0H]
8 0 0 [mm_percpu_wq]
9 0 0 [ksoftirqd/0]
10 0 0 [rcu_sched]
11 0 0 [rcu_bh]
12 0 0 [migration/0]
14 0 0 [cpuhp/0]
15 0 0 [cpuhp/1]
16 0 0 [migration/1]
17 0 0 [ksoftirqd/1]
19 0 0 [kworker/1:0H]
20 0 0 [kdevtmpfs]
21 0 0 [netns]
22 0 0 [kauditd]
23 0 0 [khungtaskd]
24 0 0 [oom_reaper]
25 0 0 [writeback]
26 0 0 [kcompactd0]
27 0 0 [ksmd]
28 0 0 [khugepaged]
29 0 0 [crypto]
30 0 0 [kintegrityd]
31 0 0 [kblockd]
32 0 0 [edac-poller]
33 0 0 [devfreq_wq]
34 0 0 [watchdogd]
36 0 0 [kswapd0]
54 0 0 [kthrotld]
55 0 0 [ipv6_addrconf]
65 0 0 [kstrp]
101 0 0 [ata_sff]
102 0 0 [scsi_eh_0]
103 0 0 [scsi_eh_1]
104 0 0 [scsi_tmf_1]
105 0 0 [scsi_eh_2]
106 0 0 [scsi_tmf_2]
108 0 0 [scsi_tmf_0]
113 0 0 [kworker/1:1H]
136 0 0 [kworker/0:2]
138 0 0 [kworker/0:1H]
166 0 0 [kworker/u5:0]
168 0 0 [jbd2/sda1-8]
169 0 0 [ext4-rsv-conver]
202 0 0 /lib/systemd/systemd-journald
219 0 0 /lib/systemd/systemd-udevd
241 101 102 /lib/systemd/systemd-timesyncd
262 0 0 [ttm_swap]
263 0 0 [irq/18-vmwgfx]
330 0 0 /lib/systemd/systemd-logind
332 0 0 /usr/sbin/rsyslogd -n -iNONE
335 104 110 /usr/bin/dbus-daemon --system --address=systemd: --nofork --nopidfile --systemd-activation --syslog-only
339 0 0 /usr/sbin/cron -f
348 0 0 /sbin/dhclient -4 -v -i -pf /run/dhclient.enp0s3.pid -lf /var/lib/dhcp/dhclient.enp0s3.leases -I -df /var/lib/dhcp/dhclient6.enp0s3.leases enp0s3
350 0 0
351 0 0
374 0 0 /lib/systemd/systemd --user
375 0 0 (sd-pam)
385 0 0 -bash
392 0 0 sshd: usuario [priv]
395 1000 1000 /lib/systemd/systemd --user
396 1000 1000 (sd-pam)
409 1000 1000
410 1000 1000
606 1000 1000
607 0 0 -bash
633 0 0 [kworker/u4:0]
8912 0 0 [kworker/0:1]
10483 0 0 [kworker/1:0]
10538 0 0 [kworker/u4:2]
10585 0 0 [kworker/1:1]
10597 0 0 [kworker/u4:1]
10603 0 0 [kworker/1:2]
11218 0 0 insmod lime-4.19.0-23-686.ko path=ram.lime format=lime
linux_pstree
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_pstree
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
Name Pid Uid
systemd 1
.systemd-journal 202
.systemd-udevd 219
.systemd-timesyn 241 101
.systemd-logind 330
.rsyslogd 332
.dbus-daemon 335 104
.cron 339
.sshd 350
..sshd 392
...sshd 409 1000
....bash 410 1000
.....su 606 1000
......bash 607
.......insmod 11218
.login 351
..bash 385
.dhclient 348
.systemd 374
..(sd-pam) 375
.systemd 395 1000
..(sd-pam) 396 1000
[kthreadd] 2
.[rcu_gp] 3
.[rcu_par_gp] 4
.[kworker/0:0H] 6
.[mm_percpu_wq] 8
.[ksoftirqd/0] 9
.[rcu_sched] 10
.[rcu_bh] 11
.[migration/0] 12
.[cpuhp/0] 14
.[cpuhp/1] 15
.[migration/1] 16
.[ksoftirqd/1] 17
.[kworker/1:0H] 19
.[kdevtmpfs] 20
.[netns] 21
.[kauditd] 22
.[khungtaskd] 23
.[oom_reaper] 24
.[writeback] 25
.[kcompactd0] 26
.[ksmd] 27
.[khugepaged] 28
.[crypto] 29
.[kintegrityd] 30
.[kblockd] 31
.[edac-poller] 32
.[devfreq_wq] 33
.[watchdogd] 34
.[kswapd0] 36
.[kthrotld] 54
.[ipv6_addrconf] 55
.[kstrp] 65
.[ata_sff] 101
.[scsi_eh_0] 102
.[scsi_eh_1] 103
.[scsi_tmf_1] 104
.[scsi_eh_2] 105
.[scsi_tmf_2] 106
.[scsi_tmf_0] 108
.[kworker/1:1H] 113
.[kworker/0:2] 136
.[kworker/0:1H] 138
.[kworker/u5:0] 166
.[jbd2/sda1-8] 168
.[ext4-rsv-conver] 169
.[ttm_swap] 262
.[irq/18-vmwgfx] 263
.[kworker/u4:0] 633
.[kworker/0:1] 8912
.[kworker/1:0] 10483
.[kworker/u4:2] 10538
.[kworker/1:1] 10585
.[kworker/u4:1] 10597
.[kworker/1:2] 10603
linux_cpuinfo
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_cpuinfo
1
2
3
4
Processor Vendor Model
------------ ---------------- -----
0 GenuineIntel Intel(R) Core(TM) i3-4130T CPU @ 2.90GHz
1 GenuineIntel Intel(R) Core(TM) i3-4130T CPU @ 2.90GHz
Análisis de red
linux_arp
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_arp
1
2
3
4
5
6
7
[192.168.10.1 ] at 64:d1:54:ec:e9:9d on enp0s3
[192.168.10.8 ] at 08:00:27:3f:5c:82 on enp0s3
[192.168.10.20 ] at f8:32:e4:72:f8:c6 on enp0s3
[fe80::66d1:54ff:feec:e99d ] at 64:d1:54:ec:e9:9d on enp0s3
[ff02::1:ffba:fc21 ] at 33:33:ff:ba:fc:21 on enp0s3
[ff02::2 ] at 33:33:00:00:00:02 on enp0s3
[ff02::16 ] at 33:33:00:00:00:16 on enp0s3
linux_ifconfig
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_ifconfig
1
2
3
4
Interface IP Address MAC Address Promiscous Mode
---------------- -------------------- ------------------ ---------------
lo 127.0.0.1 00:00:00:00:00:00 False
enp0s3 192.168.10.226 08:00:27:ba:fc:21 False
linux_route_cache y linux_netstat
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_route_cache o linux_netstat
En este caso los plugins linux_netstat y route_cache no funcionan, porque no se puede obtener la información de la tabla de enrutamiento.
Análisis de ficheros y kernel
linux_enumerate_files
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_enumerate_files
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
Inode Address Inode Number Path
------------- ------------------------- ----
0xf600b840 10328 /sys/fs/cgroup
0xf61fd4d0 10363 /sys/fs/cgroup/rdma
0xf61fcfa8 10362 /sys/fs/cgroup/cpuset
0xf61fc3a0 10361 /sys/fs/cgroup/pids
0xf61fd688 10360 /sys/fs/cgroup/memory
0xf61fdd68 10359 /sys/fs/cgroup/freezer
0xf61fd9f8 10358 /sys/fs/cgroup/perf_event
0xf61fcc38 10357 /sys/fs/cgroup/net_cls
0xf66cec38 10356 /sys/fs/cgroup/net_prio
0xf66ce558 10355 /sys/fs/cgroup/net_cls,net_prio
0xf66cea80 10354 /sys/fs/cgroup/devices
0xf66cf9f8 10353 /sys/fs/cgroup/cpuacct
0xf604fbb0 10352 /sys/fs/cgroup/cpu
0xf604e030 10351 /sys/fs/cgroup/cpu,cpuacct
0xf65da558 10350 /sys/fs/cgroup/blkio
0xf600a8c8 10330 /sys/fs/cgroup/systemd
0xf600b318 10329 /sys/fs/cgroup/unified
0xf413f3e8 1 /sys
0xf41bc620 5 /sys/dev
0xf42ebd18 7 /sys/dev/char
0xf3d42f50 7691 /sys/dev/char/4:64
0xf3d43260 7789 /sys/dev/char/4:66
0xf3d43570 7740 /sys/dev/char/4:65
0xf3d42620 7838 /sys/dev/char/4:67
0xf3c29a08 13481 /sys/dev/char/13:33
0xf3c290d8 14235 /sys/dev/char/13:34
0xf414e7a8 10 /sys/class
0xf3c2adc8 14362 /sys/class/drm_dp_aux_dev
0xf43e90d8 13993 /sys/class/scsi_generic
0xf43e53e8 13300 /sys/class/sound
0xf3d43a08 15364 /sys/class/sound/card0
0xf4118000 4 /sys/devices
0xf3c1dd18 14797 /sys/devices/power
0xf3c1da08 14798 /sys/devices/power/uevent
0xf4140dc8 1388 /sys/devices/LNXSYSTM:00
0xf4144188 2519 /sys/devices/LNXSYSTM:00/LNXSLPBN:00
0xf43da7a8 13172 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/driver
0xf43db0d8 13173 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input
0xf43da000 13174 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4
0xf3c2fa08 13180 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/phys
0xf3c2fd18 13176 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/subsystem
0xf3c2e000 14510 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/event3
0xf3c2ef50 14511 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/event3/uevent
0xf43cfd18 13179 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/name
0xf43db570 13184 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/id
0xf43db880 13185 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/id/bustype
0xf43db3e8 13183 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/properties
0xf43dbd18 13189 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/capabilities
0xf43da620 13191 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/capabilities/key
0xf43daab8 13192 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/capabilities/rel
0xf43dbb90 13193 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/capabilities/abs
0xf43dba08 13190 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/capabilities/ev
0xf43daf50 13175 /sys/devices/LNXSYSTM:00/LNXSLPBN:00/input/input4/uevent
0xf4144ab8 2494 /sys/devices/LNXSYSTM:00/LNXPWRBN:00
<snip>
linux_find_file
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_find_file -F "/etc/passwd"
1
2
3
Inode Number Inode File Path
---------------- ---------- ---------
262243 0xf4363a30 /etc/passwd
linux_recover_filesystem
1
sudo python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_recover_filesystem

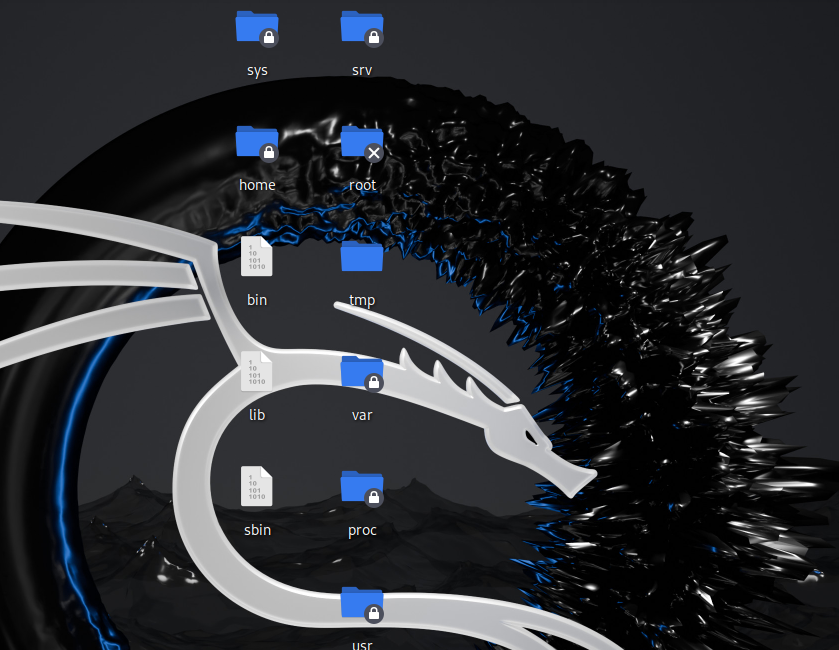

Aquí la salida es la estructura del sistema que en momento de captura estaba cargada en ram.
linux_mount
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_mount
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
tmpfs /sys/fs/cgroup tmpfs ro,nosuid,nodev,noexec
sysfs /sys sysfs ro,relatime,nosuid,nodev,noexec
tmpfs /home tmpfs ro,relatime,nosuid,noexec
debugfs /sys/kernel/debug debugfs ro,relatime
/dev/sda1 / ext4 ro,relatime
tmpfs /dev tmpfs ro,nosuid,noexec
udev /dev devtmpfs rw,relatime,nosuid
cgroup /sys/fs/cgroup/blkio cgroup ro,relatime,nosuid,nodev,noexec
cgroup /sys/fs/cgroup/pids cgroup rw,relatime,nosuid,nodev,noexec
proc /proc proc rw,relatime,nosuid,nodev,noexec
systemd-1 /proc/sys/fs/binfmt_misc autofs rw,relatime
cgroup /sys/fs/cgroup/net_cls,net_prio cgroup rw,relatime,nosuid,nodev,noexec
cgroup /sys/fs/cgroup/perf_event cgroup rw,relatime,nosuid,nodev,noexec
hugetlbfs /dev/hugepages hugetlbfs rw,relatime
tmpfs /dev/shm tmpfs rw,nosuid,nodev
securityfs /sys/kernel/security securityfs rw,relatime,nosuid,nodev,noexec
cgroup /sys/fs/cgroup/cpuset cgroup rw,relatime,nosuid,nodev,noexec
cgroup /sys/fs/cgroup/devices cgroup rw,relatime,nosuid,nodev,noexec
tmpfs /run/user/0 tmpfs rw,relatime,nosuid,nodev
pstore /sys/fs/pstore pstore rw,relatime,nosuid,nodev,noexec
mqueue /dev/mqueue mqueue rw,relatime
bpf /sys/fs/bpf bpf rw,relatime,nosuid,nodev,noexec
tmpfs /run/user/1000 tmpfs rw,relatime,nosuid,nodev
cgroup /sys/fs/cgroup/rdma cgroup rw,relatime,nosuid,nodev,noexec
cgroup /sys/fs/cgroup/freezer cgroup rw,relatime,nosuid,nodev,noexec
cgroup /sys/fs/cgroup/cpu,cpuacct cgroup ro,relatime,nosuid,nodev,noexec
cgroup2 /sys/fs/cgroup/unified cgroup2 rw,relatime,nosuid,nodev,noexec
devpts /dev/pts devpts rw,relatime,nosuid,noexec
cgroup /sys/fs/cgroup/systemd cgroup rw,relatime,nosuid,nodev,noexec
tmpfs /run/lock tmpfs rw,relatime,nosuid,nodev,noexec
cgroup /sys/fs/cgroup/memory cgroup ro,relatime,nosuid,nodev,noexec
linux_mount_cache
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_mount_cache
No está soportado
1
INFO : volatility.debug : SLUB is currently unsupported.
linux_bash
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_bash
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
Pid Name Command Time Command
-------- -------------------- ------------------------------ -------
385 bash 2023-03-15 13:25:03 UTC+0000 find . -name "linux"
385 bash 2023-03-15 13:25:03 UTC+0000 apt install linux-headers-$(uname -a)
385 bash 2023-03-15 13:25:03 UTC+0000 apt install linux-headers-$(uname -r)
385 bash 2023-03-15 13:25:03 UTC+0000 ip address
385 bash 2023-03-15 13:25:03 UTC+0000 ls
385 bash 2023-03-15 13:25:03 UTC+0000 cd tools/
385 bash 2023-03-15 13:25:03 UTC+0000 make
385 bash 2023-03-15 13:25:03 UTC+0000 S??u??????
385 bash 2023-03-15 13:25:03 UTC+0000 uname -a
385 bash 2023-03-15 13:25:03 UTC+0000 uname -r
385 bash 2023-03-15 13:25:03 UTC+0000 uname -a
385 bash 2023-03-15 13:25:03 UTC+0000 cd plugins/linux/
385 bash 2023-03-15 13:25:03 UTC+0000 ls
385 bash 2023-03-15 13:25:03 UTC+0000 ls
385 bash 2023-03-15 13:25:03 UTC+0000 cd volatility/
385 bash 2023-03-15 13:25:03 UTC+0000 apt search linux-headers | grep headers
385 bash 2023-03-15 13:25:03 UTC+0000 apt search linux-headers | grep headers | more
385 bash 2023-03-15 13:25:03 UTC+0000 ls
385 bash 2023-03-15 13:25:03 UTC+0000 make
385 bash 2023-03-15 13:25:03 UTC+0000 apt update
385 bash 2023-03-15 13:25:03 UTC+0000 cd linux
385 bash 2023-03-15 13:25:03 UTC+0000 git clone https://github.com/volatilityfoundation/volatility.git
385 bash 2023-03-15 13:25:03 UTC+0000 apt install build-essential
385 bash 2023-03-15 13:25:03 UTC+0000 make
385 bash 2023-03-15 13:25:03 UTC+0000 cd ..
385 bash 2023-03-15 13:25:03 UTC+0000 rm -R volatility/
385 bash 2023-03-15 13:25:03 UTC+0000 apt install linux-headers-$(uname -a)
385 bash 2023-03-15 13:25:03 UTC+0000 apt install volatility
385 bash 2023-03-15 13:25:03 UTC+0000 cd ..
385 bash 2023-03-15 13:25:03 UTC+0000 apt install build-essential
385 bash 2023-03-15 13:25:03 UTC+0000 cd ..
385 bash 2023-03-15 13:25:03 UTC+0000 apt install linux-headers-$(uname -r)
385 bash 2023-03-15 13:25:03 UTC+0000 cd ..
385 bash 2023-03-15 13:25:03 UTC+0000 dwarfdump
385 bash 2023-03-15 13:25:03 UTC+0000 git clone https://github.com/volatilityfoundation/volatility.git
385 bash 2023-03-15 13:25:03 UTC+0000 shutdown -h 0
385 bash 2023-03-15 13:25:03 UTC+0000 apt install dwarf
385 bash 2023-03-15 13:25:03 UTC+0000 apt search linux-image-4.19.0-16-686
385 bash 2023-03-15 13:25:03 UTC+0000 make
385 bash 2023-03-15 13:25:03 UTC+0000 ls
385 bash 2023-03-15 13:25:03 UTC+0000 apt install dwarfdump
385 bash 2023-03-15 13:25:03 UTC+0000 ls
385 bash 2023-03-15 13:25:03 UTC+0000 ls
385 bash 2023-03-15 13:25:03 UTC+0000 WVS?f????(?
<snip>
linux_dmesg
1
python2.7 vol.py -f ram.lime --profile=Linuxdebian10-4_19_0-23-686x86 linux_dmesg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
Volatility Foundation Volatility Framework 2.6.1
*** Failed to import volatility.plugins.registry.shutdown (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.getservicesids (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.timeliner (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.malware.apihooks (NameError: name 'distorm3' is not defined)
*** Failed to import volatility.plugins.malware.servicediff (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.registry.userassist (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.getsids (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.registry.shellbags (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.evtlogs (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.registry.shimcache (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.tcaudit (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.registry.dumpregistry (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.registry.lsadump (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.malware.threads (NameError: name 'distorm3' is not defined)
*** Failed to import volatility.plugins.mac.apihooks_kernel (ImportError: No module named distorm3)
*** Failed to import volatility.plugins.registry.amcache (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.mac.check_syscall_shadow (ImportError: No module named distorm3)
*** Failed to import volatility.plugins.malware.svcscan (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.registry.auditpol (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.ssdt (NameError: name 'distorm3' is not defined)
*** Failed to import volatility.plugins.registry.registryapi (ImportError: No module named Crypto.Hash)
*** Failed to import volatility.plugins.mac.apihooks (ImportError: No module named distorm3)
*** Failed to import volatility.plugins.envars (ImportError: No module named Crypto.Hash)
[0.0] Linux version 4.19.0-23-686 (debian-kernel@lists.debian.org) (gcc version 8.3.0 (Debian 8.3.0-6)) #1 SMP Debian 4.19.269-1 (2022-12-20)
[0.0] x86/fpu: Supporting XSAVE feature 0x001: 'x87 floating point registers'
[0.0] x86/fpu: Supporting XSAVE feature 0x002: 'SSE registers'
[0.0] x86/fpu: Supporting XSAVE feature 0x004: 'AVX registers'
[0.0] x86/fpu: xstate_offset[2]: 576, xstate_sizes[2]: 256
[0.0] x86/fpu: Enabled xstate features 0x7, context size is 832 bytes, using 'standard' format.
[0.0] BIOS-provided physical RAM map:
[0.0] BIOS-e820: [mem 0x0000000000000000-0x000000000009fbff] usable
[0.0] BIOS-e820: [mem 0x000000000009fc00-0x000000000009ffff] reserved
[0.0] BIOS-e820: [mem 0x00000000000f0000-0x00000000000fffff] reserved
[0.0] BIOS-e820: [mem 0x0000000000100000-0x000000003ffeffff] usable
[0.0] BIOS-e820: [mem 0x000000003fff0000-0x000000003fffffff] ACPI data
[0.0] BIOS-e820: [mem 0x00000000fec00000-0x00000000fec00fff] reserved
[0.0] BIOS-e820: [mem 0x00000000fee00000-0x00000000fee00fff] reserved
[0.0] BIOS-e820: [mem 0x00000000fffc0000-0x00000000ffffffff] reserved
[0.0] Notice: NX (Execute Disable) protection cannot be enabled: non-PAE kernel!
[0.0] SMBIOS 2.5 present.
[0.0] DMI: innotek GmbH VirtualBox/VirtualBox, BIOS VirtualBox 12/01/2006
[0.0] Hypervisor detected: KVM
[0.0] kvm-clock: Using msrs 4b564d01 and 4b564d00
[831.0] kvm-clock: cpu 0, msr 9a30001, primary cpu clock
[904.0] kvm-clock: using sched offset of 7370052075 cycles
[3395.0] clocksource: kvm-clock: mask: 0xffffffffffffffff max_cycles: 0x1cd42e4dffb, max_idle_ns: 881590591483 ns
[5981.0] tsc: Detected 2893.298 MHz processor
[1780280.0] e820: update [mem 0x00000000-0x00000fff] usable ==> reserved
[1782221.0] e820: remove [mem 0x000a0000-0x000fffff] usable
[1786001.0] last_pfn = 0x3fff0 max_arch_pfn = 0x100000
[1797223.0] MTRR default type: uncachable
[1797967.0] MTRR variable ranges disabled:
[1798647.0] Disabled
[1799773.0] x86/PAT: MTRRs disabled, skipping PAT initialization too.
[1802657.0] CPU MTRRs all blank - virtualized system.
[1805082.0] x86/PAT: Configuration [0-7]: WB WT UC- UC WB WT UC- UC
[1835283.0] found SMP MP-table at [mem 0x0009fff0-0x0009ffff]
[68949783.0] initial memory mapped: [mem 0x00000000-0x09ffffff]
[69017833.0] RAMDISK: [mem 0x3568b000-0x36b3cfff]
[69022980.0] ACPI: Early table checksum verification disabled
[69046561.0] ACPI: RSDP 0x00000000000E0000 000024 (v02 VBOX )
[69050763.0] ACPI: XSDT 0x000000003FFF0030 00003C (v01 VBOX VBOXXSDT 00000001 ASL 00000061)
[69056309.0] ACPI: FACP 0x000000003FFF00F0 0000F4 (v04 VBOX VBOXFACP 00000001 ASL 00000061)
[69062049.0] ACPI: DSDT 0x000000003FFF0610 002353 (v02 VBOX VBOXBIOS 00000002 INTL 20100528)
<snip>
Volatility 3
Como ya indicamos anteriormente en esta sección vamos a omitir la selección y extracción de mapas de memoria vamos a asumir que ya realizamos ese proceso.
Asumiendo lo anterior y con el mapa de memoria RAM ubicado en volatility3/volatility3/symbols/linux/debian-XXX.json.xz, continuamos con la ejecución del vol.py
Análisis
linux.bash.Bash
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
❯ python3 vol.py -f ram.lime linux.bash.Bash
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
PID Process CommandTime Command
385 bash 2023-03-15 13:25:03.000000 UTC apt install linux-headers-$(uname -a)
385 bash 2023-03-15 13:25:03.000000 UTC ls
385 bash 2023-03-15 13:25:03.000000 UTC ls
385 bash 2023-03-15 13:25:03.000000 UTC ip address
385 bash 2023-03-15 13:25:03.000000 UTC cd tools/
385 bash 2023-03-15 13:25:03.000000 UTC make
385 bash 2023-03-15 13:25:03.000000 UTC uname -a
385 bash 2023-03-15 13:25:03.000000 UTC apt install linux-headers-$(uname -r)
385 bash 2023-03-15 13:25:03.000000 UTC ls
385 bash 2023-03-15 13:25:03.000000 UTC S�u���ú�
385 bash 2023-03-15 13:25:03.000000 UTC uname -a
385 bash 2023-03-15 13:25:03.000000 UTC cd plugins/linux/
385 bash 2023-03-15 13:25:03.000000 UTC cd volatility/
385 bash 2023-03-15 13:25:03.000000 UTC apt search linux-headers | grep headers | more
385 bash 2023-03-15 13:25:03.000000 UTC apt search linux-headers | grep headers
385 bash 2023-03-15 13:25:03.000000 UTC ls
385 bash 2023-03-15 13:25:03.000000 UTC ls
385 bash 2023-03-15 13:25:03.000000 UTC uname -r
385 bash 2023-03-15 13:25:03.000000 UTC apt update
385 bash 2023-03-15 13:25:03.000000 UTC cd linux
385 bash 2023-03-15 13:25:03.000000 UTC git clone https://github.com/volatilityfoundation/volatility.git
385 bash 2023-03-15 13:25:03.000000 UTC apt install build-essential
385 bash 2023-03-15 13:25:03.000000 UTC cd ..
385 bash 2023-03-15 13:25:03.000000 UTC rm -R volatility/
385 bash 2023-03-15 13:25:03.000000 UTC make
385 bash 2023-03-15 13:25:03.000000 UTC apt install volatility
385 bash 2023-03-15 13:25:03.000000 UTC cd ..
385 bash 2023-03-15 13:25:03.000000 UTC apt install build-essentials
385 bash 2023-03-15 13:25:03.000000 UTC cd ..
385 bash 2023-03-15 13:25:03.000000 UTC apt install linux-headers-$(uname -a)
385 bash 2023-03-15 13:25:03.000000 UTC apt install linux-headers-$(uname -r)
385 bash 2023-03-15 13:25:03.000000 UTC dwarfdump
385 bash 2023-03-15 13:25:03.000000 UTC shutdown -h 0
385 bash 2023-03-15 13:25:03.000000 UTC apt install dwarfdump
385 bash 2023-03-15 13:25:03.000000 UTC ip address
385 bash 2023-03-15 13:25:03.000000 UTC apt search linux-image
385 bash 2023-03-15 13:25:03.000000 UTC apt install dwarf
385 bash 2023-03-15 13:25:03.000000 UTC apt search linux-image | grep image
385 bash 2023-03-15 13:25:03.000000 UTC make
385 bash 2023-03-15 13:25:03.000000 UTC apt search linux-image | more
385 bash 2023-03-15 13:25:03.000000 UTC find . -name "linux"
385 bash 2023-03-15 13:25:03.000000 UTC ls
385 bash 2023-03-15 13:25:03.000000 UTC apt search linux-image-4.19.0-16-686
385 bash 2023-03-15 13:25:03.000000 UTC cd ..
385 bash 2023-03-15 13:25:03.000000 UTC zip debian10-$(uname -r).zip module.dwarf /boot/System.map-4.19.0-23-686
385 bash 2023-03-15 13:25:03.000000 UTC apt install build-essential
385 bash 2023-03-15 13:25:03.000000 UTC WVS�f����(�
<snip>
linux.kmsg.Kmsg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
❯ python3 vol.py -f ram.lime linux.kmsg.Kmsg
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
facility level timestamp caller line
56 info 5833691318.373523 - ζZ�,oY���פ���\����~�6�I��7�!l�����
56 info 5833691318.373523 - iC�(�-�U%,�4
56 info 5833691318.373523 - ���\���
56 info 5833691318.373523 - /u-ϳ����z4]QW�I�"���7�?ȩz}-�9b�Q�uEE�QZ
56 info 5833691318.373523 - dS��F
56 info 5833691318.373523 - �Z���]$�VX"+`��W��7�ߍv�k=�+�(c��E�&/�M
56 info 5833691318.373523 - }H��dz;��6���m�hJH
56 info 5833691318.373523 - �����fͱ�v@ԛؿІ
56 info 5833691318.373523 - �@���6���\s������;� r���S���#�u�eH>���Hm)���K�mo�.��
56 info 5833691318.373523 - �a)��RC�7>�gI�� �|��;,M�.A��ग़��QN�K�;�jJ[�wD��@v���1.K��lF� l�_���:�f���;�ض
56 info 5833691318.373523 - ����zv�ó�o�O��S��=t�o�O���ӿ���c5�K�G���=t:�Ac~��Ƣ������>@���C�F�Ac��m��;�tG�0U�T�����5�5|:M�ۨ�.3h2&�[
56 info 5833691318.373523 - ?M@ ���k~+!F�m�f����E��|� s4c<Њ���0����@�l�^.I��$� k���1:���Z��(xO����|��Wl4����V�
56 info 5833691318.373523 - ��g�QŶ�
56 info 5833691318.373523 - � �g�t!��L�j�R�n?���j�(5
56 info 5833691318.373523 - �o�C��P�%�oK���0�uq�6��k=ќ�����o&�U����Ý�gj�3$ ������
56 info 5833691318.373523 - �̗�,�M!�D�A��ܜ��Q?�m`|�`��}�v^�b+D1.p���4����J+��40�]K۫υ���v�3��6�� �7x�!w��ֻ/�w�u��9��>O�FZ�Y�D��hG+�D�6� -���O�/�"����n�'TV
56 info 5833691318.373523 - ~�W_�*
56 info 5833691318.373523 - �k8l�O%�~M%�e+`c=�*���e�o������~KxFq�5�"
56 info 5833691318.373523 - ��i��C�Ll/Ԡ"���H{.iUm���َHz�9���zJ��q�u8������mz`�ǎ��j�c�
56 info 5833691318.373523 - С�Z6�
56 info 5833691318.373523 - y�co�oۤÛ�uh�j:��:\�K���#��C����#�����;Z�
56 info 5833691318.373523 - ���{vp�&�a��M��/�ql��
56 info 5833691318.373523 - �A�1�ω
56 info 5833691318.373523 - �
56 info 5833691318.373523 - �1�1���M��#?%b6K�S�N�D���ܔ��KvJ�����c���D��D�u����6���{�o���q��D_�fĂ[N� USj�hF�*fWس�x��篍`F��`��E�|�
56 info 5833691318.373523 -
56 info 5833691318.373523 - ��yG���"�;�2����>(`���s�V��>>6־���J�������N�0���z�O3? �g��<�@Bg�̳����p7s1s�2͂�-�|�؋�WB2��g�������M��g�����$��$ӧ�X�Il%�;�������'PM��r��k3�Q_ ������į���4����,]�mx�����Wƕ�؏��"�lÈ�T��t�yܢEO�̩8��o����wn��v���%��\3��h�m��չ�9[o��ܹ��6-R����Zf���6����Nj���D?���f���83�н�.K��NWO���uOY����k"|�ƫO9�o^O92��,���z
56 info 5833691318.373523 - t��+�*�M�DkEStE�=�����";i��2��7����
56 info 5833691318.373523 - ����^�|mY�"�Y#�
56 info 5833691318.373523 - ��6GZQ�YT�;Jָ�MU4�!� �Q/
56 info 5833691318.373523 - ���
56 info 5833691318.373523 - ]�
56 info 5833691318.373523 - ��
56 info 5833691318.373523 - �0������np�a/��7�� T�0�(w|>��VE�S�R��
56 info 5833691318.373523 - ��7����k��Ή���✉���X�kv ր耾ͧ4��"�5�eEI�:
<snip>
linux.lsmod.Lsmod
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
❯ python3 vol.py -f ram.lime linux.lsmod.Lsmod
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
Offset Name Size
0xf77f9040 lime 20480
0xf77e80c0 joydev 20480
0xf76e31c0 crc32_pclmul 16384
0xf76d4380 intel_rapl_perf 16384
0xf7cf6a80 vmwgfx 225280
0xf77135c0 ttm 65536
0xf76aa040 evdev 20480
0xf75fe080 pcspkr 16384
0xf77b64c0 drm_kms_helper 135168
0xf76784c0 snd_intel8x0 32768
0xf77e2140 serio_raw 16384
0xf75ef0c0 hid_generic 16384
0xf7704080 sg 28672
0xf7cbb040 drm 323584
0xf77d3400 snd_ac97_codec 98304
0xf7552080 ac97_bus 16384
0xf76fa500 snd_pcm 81920
0xf769d080 snd_timer 28672
0xf74b0000 fb_sys_fops 16384
0xf76c7240 snd 61440
0xf766a140 ac 16384
0xf762e000 syscopyarea 16384
0xf76b91c0 video 45056
0xf7570040 sysfillrect 16384
0xf7639000 sysimgblt 16384
0xf7634000 soundcore 16384
0xf7640180 button 16384
0xf7661200 vboxguest 32768
0xf75bf1c0 ip_tables 20480
0xf756b1c0 x_tables 24576
0xf75b9600 autofs4 36864
0xf754d680 usbhid 45056
0xf7693fc0 hid 102400
0xf778dc00 ext4 532480
0xf74a6000 crc16 16384
0xf7476080 mbcache 16384
0xf7656100 jbd2 86016
0xf746c1c0 crc32c_generic 16384
0xf751e180 fscrypto 24576
0xf74710c0 ecb 16384
0xf74551c0 crc32c_intel 16384
0xf76200c0 sr_mod 24576
0xf7619280 sd_mod 49152
0xf760c380 cdrom 49152
0xf75416c0 aesni_intel 20480
0xf75383c0 ata_generic 16384
0xf74ab2c0 ohci_pci 16384
0xf7467180 aes_i586 20480
0xf7533040 crypto_simd 16384
0xf752a0c0 cryptd 20480
0xf75af840 ohci_hcd 45056
0xf75e2540 psmouse 131072
0xf74f61c0 ehci_pci 16384
0xf7564a80 ehci_hcd 61440
0xf745f900 ata_piix 32768
0xf75f9480 ahci 36864
0xf74f1300 libahci 28672
0xf74e62c0 i2c_piix4 24576
0xf74db680 usbcore 188416
0xf759e340 libata 192512
0xf7524040 usb_common 16384
0xf7515f80 e1000 118784
0xf749ebc0 scsi_mod 172032
linux.lsof.Lsof
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
❯ python3 vol.py -f ram.lime linux.lsof.Lsof
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
PID TID Process FD Path Device Inode Type Mode Changed Modified Accessed Size
1 1 systemd 0 /dev/null 0:6 1028 CHR crw-rw-rw- 2023-03-15 13:25:00.252000 UTC 2023-03-15 13:25:00.252000 UTC 2023-03-15 13:25:00.252000 UTC 0
1 1 systemd 1 /dev/null 0:6 1028 CHR crw-rw-rw- 2023-03-15 13:25:00.252000 UTC 2023-03-15 13:25:00.252000 UTC 2023-03-15 13:25:00.252000 UTC 0
1 1 systemd 2 /dev/null 0:6 1028 CHR crw-rw-rw- 2023-03-15 13:25:00.252000 UTC 2023-03-15 13:25:00.252000 UTC 2023-03-15 13:25:00.252000 UTC 0
1 1 systemd 3 /dev/kmsg 0:6 1034 CHR crw-r--r-- 2023-03-15 13:25:00.248000 UTC 2023-03-15 13:25:00.248000 UTC 2023-03-15 13:25:00.248000 UTC 0
1 1 systemd 4 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 5 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 6 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 7 /sys/fs/cgroup/unified 0:24 1 DIR dr-xr-xr-x 2023-03-15 13:24:59.736000 UTC 2023-03-15 13:24:59.736000 UTC 2023-03-15 13:24:59.736000 UTC 0
1 1 systemd 8 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 9 socket:[10496] 0:9 10496 SOCK srwxrwxrwx - - - 0
1 1 systemd 10 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 11 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 13 /proc/1/mountinfo 0:4 10497 REG -r--r--r-- 2023-03-15 13:24:59.804000 UTC 2023-03-15 13:24:59.804000 UTC 2023-03-15 13:24:59.804000 UTC 0
1 1 systemd 14 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 15 /proc/swaps 0:4 4026532062 REG -r--r--r-- 2023-03-15 13:24:59.416000 UTC 2023-03-15 13:24:59.416000 UTC 2023-03-15 13:24:59.416000 UTC 0
1 1 systemd 16 socket:[10498] 0:9 10498 SOCK srwxrwxrwx - - - 0
1 1 systemd 17 socket:[10500] 0:9 10500 SOCK srwxrwxrwx - - - 0
1 1 systemd 18 socket:[10501] 0:9 10501 SOCK srwxrwxrwx - - - 0
1 1 systemd 19 socket:[10502] 0:9 10502 SOCK srwxrwxrwx - - - 0
1 1 systemd 23 socket:[13866] 0:9 13866 SOCK srwxrwxrwx - - - 0
1 1 systemd 24 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 25 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 26 socket:[10509] 0:9 10509 SOCK srwxrwxrwx - - - 0
1 1 systemd 27 socket:[10512] 0:9 10512 SOCK srwxrwxrwx - - - 0
1 1 systemd 28 socket:[10516] 0:9 10516 SOCK srwxrwxrwx - - - 0
1 1 systemd 29 anon_inode:[8319] 0:13 8319 - ?rw------- 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 2023-03-15 13:25:04.865525 UTC 0
1 1 systemd 30 /dev/autofs 0:6 10322 CHR crw-r--r-- 2023-03-15 13:25:00.264000 UTC 2023-03-15 13:25:00.264000 UTC 2023-03-15 13:25:00.264000 UTC 0
1 1 systemd 31 pipe:[10534] 0:12 10534 FIFO prw------- 2023-03-15 13:24:59.868000 UTC 2023-03-15 13:24:59.868000 UTC 2023-03-15 13:24:59.868000 UTC 0
linux.malfind.Malfind
1
2
3
4
❯ python3 vol.py -f ram.lime linux.malfind.Malfind
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
PID Process Start End Protection Hexdump Disasm
En este caso no encuentra posibles artefactos malignos en memoria.
linux.mountinfo.MountInfo
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
❯ python3 vol.py -f ram.lime linux.mountinfo.MountInfo
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
MNT_NS_ID MOUNT ID PARENT_ID MAJOR:MINOR ROOT MOUNT_POINT MOUNT_OPTIONS FIELDS FSTYPE MOUNT_SRC SB_OPTIONS
4026531840 0 0 0:1 / / rw rootfs rootfs rw
4026531840 19 24 0:18 / /sys rw,nosuid,nodev,noexec,relatime shared:7 sysfs sysfs rw
4026531840 20 24 0:4 / /proc rw,nosuid,nodev,noexec,relatime shared:14 proc proc rw
4026531840 21 24 0:6 / /dev rw,nosuid,relatime shared:2 devtmpfs udev rw
4026531840 22 21 0:19 / /dev/pts rw,nosuid,noexec,relatime shared:3 devpts devpts rw
4026531840 23 24 0:20 / /run rw,nosuid,noexec,relatime shared:5 tmpfs tmpfs rw
4026531840 24 0 8:1 / / rw,relatime shared:1 ext4 /dev/sda1 rw
4026531840 25 19 0:7 / /sys/kernel/security rw,nosuid,nodev,noexec,relatime shared:8 securityfs securityfs rw
4026531840 26 21 0:21 / /dev/shm rw,nosuid,nodev shared:4 tmpfs tmpfs rw
4026531840 27 23 0:22 / /run/lock rw,nosuid,nodev,noexec,relatime shared:6 tmpfs tmpfs rw
4026531840 28 19 0:23 / /sys/fs/cgroup ro,nosuid,nodev,noexec shared:9 tmpfs tmpfs ro
4026531840 29 28 0:24 / /sys/fs/cgroup/unified rw,nosuid,nodev,noexec,relatime shared:10 cgroup2 cgroup2 rw
4026531840 30 28 0:25 / /sys/fs/cgroup/systemd rw,nosuid,nodev,noexec,relatime shared:11 cgroup cgroup rw
4026531840 31 19 0:26 / /sys/fs/pstore rw,nosuid,nodev,noexec,relatime shared:12 pstore pstore rw
4026531840 32 19 0:27 / /sys/fs/bpf rw,nosuid,nodev,noexec,relatime shared:13 bpf bpf rw
4026531840 33 28 0:28 / /sys/fs/cgroup/blkio rw,nosuid,nodev,noexec,relatime shared:15 cgroup cgroup rw
4026531840 34 28 0:29 / /sys/fs/cgroup/cpu,cpuacct rw,nosuid,nodev,noexec,relatime shared:16 cgroup cgroup rw
4026531840 35 28 0:30 / /sys/fs/cgroup/devices rw,nosuid,nodev,noexec,relatime shared:17 cgroup cgroup rw
4026531840 36 28 0:31 / /sys/fs/cgroup/net_cls,net_prio rw,nosuid,nodev,noexec,relatime shared:18 cgroup cgroup rw
4026531840 37 28 0:32 / /sys/fs/cgroup/perf_event rw,nosuid,nodev,noexec,relatime shared:19 cgroup cgroup rw
4026531840 38 28 0:33 / /sys/fs/cgroup/freezer rw,nosuid,nodev,noexec,relatime shared:20 cgroup cgroup rw
4026531840 39 28 0:34 / /sys/fs/cgroup/memory rw,nosuid,nodev,noexec,relatime shared:21 cgroup cgroup rw
4026531840 40 28 0:35 / /sys/fs/cgroup/pids rw,nosuid,nodev,noexec,relatime shared:22 cgroup cgroup rw
4026531840 41 28 0:36 / /sys/fs/cgroup/cpuset rw,nosuid,nodev,noexec,relatime shared:23 cgroup cgroup rw
4026531840 42 28 0:37 / /sys/fs/cgroup/rdma rw,nosuid,nodev,noexec,relatime shared:24 cgroup cgroup rw
4026531840 43 20 0:38 / /proc/sys/fs/binfmt_misc rw,relatime shared:25 autofs systemd-1 rw
4026531840 44 21 0:17 / /dev/mqueue rw,relatime shared:26 mqueue mqueue rw
4026531840 45 21 0:39 / /dev/hugepages rw,relatime shared:27 hugetlbfs hugetlbfs rw
<snip>
linux.proc.Maps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
❯ python3 vol.py -f ram.lime linux.proc.Maps
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
PID Process Start End Flags PgOff Major Minor Inode File Path File output
1 systemd 0x469000 0x47f000 r-- 0x0 8 1 787585 /usr/lib/systemd/systemd Disabled
1 systemd 0x47f000 0x538000 r-x 0x16000 8 1 787585 /usr/lib/systemd/systemd Disabled
1 systemd 0x538000 0x5aa000 r-- 0xcf000 8 1 787585 /usr/lib/systemd/systemd Disabled
1 systemd 0x5aa000 0x5ca000 r-- 0x140000 8 1 787585 /usr/lib/systemd/systemd Disabled
1 systemd 0x5ca000 0x5cb000 rw- 0x160000 8 1 787585 /usr/lib/systemd/systemd Disabled
1 systemd 0x1b66000 0x1c0c000 rw- 0x0 0 0 0 [heap] Disabled
1 systemd 0xb70ec000 0xb70f0000 rw- 0x0 0 0 0 Anonymous Mapping Disabled
1 systemd 0xb70f0000 0xb70fa000 r-- 0x0 8 1 783962 /usr/lib/i386-linux-gnu/libm-2.28.so Disabled
1 systemd 0xb70fa000 0xb71bc000 r-x 0xa000 8 1 783962 /usr/lib/i386-linux-gnu/libm-2.28.so Disabled
1 systemd 0xb71bc000 0xb71f4000 r-- 0xcc000 8 1 783962 /usr/lib/i386-linux-gnu/libm-2.28.so Disabled
1 systemd 0xb71f4000 0xb71f5000 r-- 0x103000 8 1 783962 /usr/lib/i386-linux-gnu/libm-2.28.so Disabled
1 systemd 0xb71f5000 0xb71f6000 rw- 0x104000 8 1 783962 /usr/lib/i386-linux-gnu/libm-2.28.so Disabled
1 systemd 0xb71f6000 0xb71f9000 r-- 0x0 8 1 786721 /usr/lib/i386-linux-gnu/libudev.so.1.6.13 Disabled
1 systemd 0xb71f9000 0xb7210000 r-x 0x3000 8 1 786721 /usr/lib/i386-linux-gnu/libudev.so.1.6.13 Disabled
1 systemd 0xb7210000 0xb721b000 r-- 0x1a000 8 1 786721 /usr/lib/i386-linux-gnu/libudev.so.1.6.13 Disabled
1 systemd 0xb721b000 0xb721c000 r-- 0x24000 8 1 786721 /usr/lib/i386-linux-gnu/libudev.so.1.6.13 Disabled
1 systemd 0xb721c000 0xb721d000 rw- 0x25000 8 1 786721 /usr/lib/i386-linux-gnu/libudev.so.1.6.13 Disabled
1 systemd 0xb721d000 0xb721f000 rw- 0x0 0 0 0 Anonymous Mapping Disabled
1 systemd 0xb721f000 0xb7222000 r-- 0x0 8 1 784311 /usr/lib/i386-linux-gnu/libgpg-error.so.0.26.1 Disabled
1 systemd 0xb7222000 0xb7235000 r-x 0x3000 8 1 784311 /usr/lib/i386-linux-gnu/libgpg-error.so.0.26.1 Disabled
1 systemd 0xb7235000 0xb7242000 r-- 0x16000 8 1 784311 /usr/lib/i386-linux-gnu/libgpg-error.so.0.26.1 Disabled
1 systemd 0xb7242000 0xb7243000 r-- 0x22000 8 1 784311 /usr/lib/i386-linux-gnu/libgpg-error.so.0.26.1 Disabled
1 systemd 0xb7243000 0xb7244000 rw- 0x23000 8 1 784311 /usr/lib/i386-linux-gnu/libgpg-error.so.0.26.1 Disabled
1 systemd 0xb7244000 0xb7246000 r-- 0x0 8 1 787402 /usr/lib/i386-linux-gnu/libjson-c.so.3.0.1 Disabled
1 systemd 0xb7246000 0xb724c000 r-x 0x2000 8 1 787402 /usr/lib/i386-linux-gnu/libjson-c.so.3.0.1 Disabled
1 systemd 0xb724c000 0xb724f000 r-- 0x8000 8 1 787402 /usr/lib/i386-linux-gnu/libjson-c.so.3.0.1 Disabled
1 systemd 0xb724f000 0xb7250000 r-- 0xa000 8 1 787402 /usr/lib/i386-linux-gnu/libjson-c.so.3.0.1 Disabled
1 systemd 0xb7250000 0xb7251000 rw- 0xb000 8 1 787402 /usr/lib/i386-linux-gnu/libjson-c.so.3.0.1 Disabled
<snip>
linux.psaux.PsAux
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
❯ python3 vol.py -f ram.lime linux.psaux.PsAux
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
PID PPID COMM ARGS
1 0 systemd /sbin/init
2 0 kthreadd [kthreadd]
3 2 rcu_gp [rcu_gp]
4 2 rcu_par_gp [rcu_par_gp]
6 2 kworker/0:0H [kworker/0:0H]
8 2 mm_percpu_wq [mm_percpu_wq]
9 2 ksoftirqd/0 [ksoftirqd/0]
10 2 rcu_sched [rcu_sched]
11 2 rcu_bh [rcu_bh]
12 2 migration/0 [migration/0]
14 2 cpuhp/0 [cpuhp/0]
15 2 cpuhp/1 [cpuhp/1]
16 2 migration/1 [migration/1]
17 2 ksoftirqd/1 [ksoftirqd/1]
19 2 kworker/1:0H [kworker/1:0H]
20 2 kdevtmpfs [kdevtmpfs]
21 2 netns [netns]
22 2 kauditd [kauditd]
23 2 khungtaskd [khungtaskd]
24 2 oom_reaper [oom_reaper]
25 2 writeback [writeback]
26 2 kcompactd0 [kcompactd0]
27 2 ksmd [ksmd]
28 2 khugepaged [khugepaged]
29 2 crypto [crypto]
30 2 kintegrityd [kintegrityd]
31 2 kblockd [kblockd]
32 2 edac-poller [edac-poller]
33 2 devfreq_wq [devfreq_wq]
34 2 watchdogd [watchdogd]
36 2 kswapd0 [kswapd0]
54 2 kthrotld [kthrotld]
55 2 ipv6_addrconf [ipv6_addrconf]
65 2 kstrp [kstrp]
101 2 ata_sff [ata_sff]
102 2 scsi_eh_0 [scsi_eh_0]
103 2 scsi_eh_1 [scsi_eh_1]
104 2 scsi_tmf_1 [scsi_tmf_1]
105 2 scsi_eh_2 [scsi_eh_2]
106 2 scsi_tmf_2 [scsi_tmf_2]
108 2 scsi_tmf_0 [scsi_tmf_0]
113 2 kworker/1:1H [kworker/1:1H]
136 2 kworker/0:2 [kworker/0:2]
138 2 kworker/0:1H [kworker/0:1H]
166 2 kworker/u5:0 [kworker/u5:0]
168 2 jbd2/sda1-8 [jbd2/sda1-8]
169 2 ext4-rsv-conver [ext4-rsv-conver]
202 1 systemd-journal /lib/systemd/systemd-journald
219 1 systemd-udevd /lib/systemd/systemd-udevd
241 1 systemd-timesyn /lib/systemd/systemd-timesyncd
262 2 ttm_swap [ttm_swap]
263 2 irq/18-vmwgfx [irq/18-vmwgfx]
330 1 systemd-logind /lib/systemd/systemd-logind
332 1 rsyslogd /usr/sbin/rsyslogd -n -iNONE
335 1 dbus-daemon /usr/bin/dbus-daemon --system --address=systemd: --nofork --nopidfile --systemd-activation --syslog-only
339 1 cron /usr/sbin/cron -f
348 1 dhclient /sbin/dhclient -4 -v -i -pf /run/dhclient.enp0s3.pid -lf /var/lib/dhcp/dhclient.enp0s3.leases -I -df /var/lib/dhcp/dhclient6.enp0s3.leases enp0s3
350 1 sshd -
351 1 login -
374 1 systemd /lib/systemd/systemd --user
375 374 (sd-pam) (sd-pam)
385 351 bash -bash
392 350 sshd sshd: usuario [priv]
395 1 systemd /lib/systemd/systemd --user
396 395 (sd-pam) (sd-pam)
409 392 sshd -
410 409 bash -
606 410 su -
607 606 bash -bash
633 2 kworker/u4:0 [kworker/u4:0]
8912 2 kworker/0:1 [kworker/0:1]
10483 2 kworker/1:0 [kworker/1:0]
10538 2 kworker/u4:2 [kworker/u4:2]
10585 2 kworker/1:1 [kworker/1:1]
10597 2 kworker/u4:1 [kworker/u4:1]
10603 2 kworker/1:2 [kworker/1:2]
11218 607 insmod insmod lime-4.19.0-23-686.ko path=ram.lime format=lime
linux.pslist.PsList
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
❯ python3 vol.py -f ram.lime linux.pslist.PsList
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
OFFSET (V) PID TID PPID COMM UID GID EUID EGID CREATION TIME File output
0xf491cb40 1 1 0 systemd 0 0 0 0 2023-03-15 13:25:04.100016 UTC Disabled
0xf4918ac0 2 2 0 kthreadd 0 0 0 0 2023-03-15 13:25:04.100016 UTC Disabled
0xf4919580 3 3 2 rcu_gp 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf491b5c0 4 4 2 rcu_par_gp 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf4918000 6 6 2 kworker/0:0H 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf491a040 8 8 2 mm_percpu_wq 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf491e0c0 9 9 2 ksoftirqd/0 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf491eb80 10 10 2 rcu_sched 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf491ab00 11 11 2 rcu_bh 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf493cb40 12 12 2 migration/0 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf493b5c0 14 14 2 cpuhp/0 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf493c080 15 15 2 cpuhp/1 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf4938000 16 16 2 migration/1 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf493d600 17 17 2 ksoftirqd/1 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf493e0c0 19 19 2 kworker/1:0H 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf493eb80 20 20 2 kdevtmpfs 0 0 0 0 2023-03-15 13:25:04.208016 UTC Disabled
0xf493ab00 21 21 2 netns 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49c8000 22 22 2 kauditd 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49cd600 23 23 2 khungtaskd 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49ca040 24 24 2 oom_reaper 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49ce0c0 25 25 2 writeback 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49ceb80 26 26 2 kcompactd0 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49cab00 27 27 2 ksmd 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49ccb40 28 28 2 khugepaged 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49c8ac0 29 29 2 crypto 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49c9580 30 30 2 kintegrityd 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49cb5c0 31 31 2 kblockd 0 0 0 0 2023-03-15 13:25:04.212016 UTC Disabled
0xf49cc080 32 32 2 edac-poller 0 0 0 0 2023-03-15 13:25:04.264016 UTC Disabled
0xf4a50ac0 33 33 2 devfreq_wq 0 0 0 0 2023-03-15 13:25:04.264016 UTC Disabled
0xf4a51580 34 34 2 watchdogd 0 0 0 0 2023-03-15 13:25:04.264016 UTC Disabled
0xf4a54080 36 36 2 kswapd0 0 0 0 0 2023-03-15 13:25:04.690982 UTC Disabled
0xf4be8ac0 54 54 2 kthrotld 0 0 0 0 2023-03-15 13:25:05.180348 UTC Disabled
0xf4beab00 55 55 2 ipv6_addrconf 0 0 0 0 2023-03-15 13:25:05.539074 UTC Disabled
0xf64a2040 65 65 2 kstrp 0 0 0 0 2023-03-15 13:25:05.546060 UTC Disabled
0xf4beeb80 101 101 2 ata_sff 0 0 0 0 2023-03-15 13:25:05.742973 UTC Disabled
0xf4a560c0 102 102 2 scsi_eh_0 0 0 0 0 2023-03-15 13:25:05.748902 UTC Disabled
0xf4be8000 103 103 2 scsi_eh_1 0 0 0 0 2023-03-15 13:25:05.752885 UTC Disabled
0xf4becb40 104 104 2 scsi_tmf_1 0 0 0 0 2023-03-15 13:25:05.756135 UTC Disabled
0xf4beb5c0 105 105 2 scsi_eh_2 0 0 0 0 2023-03-15 13:25:05.756499 UTC Disabled
0xf64b4b40 106 106 2 scsi_tmf_2 0 0 0 0 2023-03-15 13:25:05.756513 UTC Disabled
0xf4a55600 108 108 2 scsi_tmf_0 0 0 0 0 2023-03-15 13:25:05.757558 UTC Disabled
0xf6664080 113 113 2 kworker/1:1H 0 0 0 0 2023-03-15 13:25:06.091620 UTC Disabled
0xf6662b00 136 136 2 kworker/0:2 0 0 0 0 2023-03-15 13:25:06.142868 UTC Disabled
0xf6666b80 138 138 2 kworker/0:1H 0 0 0 0 2023-03-15 13:25:06.700590 UTC Disabled
0xf6660ac0 166 166 2 kworker/u5:0 0 0 0 0 2023-03-15 13:25:07.623253 UTC Disabled
0xf6664b40 168 168 2 jbd2/sda1-8 0 0 0 0 2023-03-15 13:25:07.675683 UTC Disabled
0xf6660000 169 169 2 ext4-rsv-conver 0 0 0 0 2023-03-15 13:25:07.675890 UTC Disabled
0xf4a52040 202 202 1 systemd-journal 0 0 0 0 2023-03-15 13:25:08.048522 UTC Disabled
0xf5d0c080 219 219 1 systemd-udevd 0 0 0 0 2023-03-15 13:25:08.147251 UTC Disabled
0xf5d09580 241 241 1 systemd-timesyn 101 102 101 102 2023-03-15 13:25:08.282660 UTC Disabled
0xf5d08000 262 262 2 ttm_swap 0 0 0 0 2023-03-15 13:25:08.383345 UTC Disabled
0xf5d0b5c0 263 263 2 irq/18-vmwgfx 0 0 0 0 2023-03-15 13:25:08.387636 UTC Disabled
0xf64a1580 330 330 1 systemd-logind 0 0 0 0 2023-03-15 13:25:08.581727 UTC Disabled
0xf64a6b80 332 332 1 rsyslogd 0 0 0 0 2023-03-15 13:25:08.583059 UTC Disabled
0xf64a2b00 335 335 1 dbus-daemon 104 110 104 110 2023-03-15 13:25:08.585553 UTC Disabled
0xf64a60c0 339 339 1 cron 0 0 0 0 2023-03-15 13:25:08.597762 UTC Disabled
0xf38eab00 348 348 1 dhclient 0 0 0 0 2023-03-15 13:25:08.633962 UTC Disabled
0xf64a0000 350 350 1 sshd 0 0 0 0 2023-03-15 13:25:08.654858 UTC Disabled
0xf64a4b40 351 351 1 login 0 0 0 0 2023-03-15 13:25:08.656266 UTC Disabled
0xf5d0ab00 374 374 1 systemd 0 0 0 0 2023-03-15 13:25:11.376197 UTC Disabled
0xf5d08ac0 375 375 374 (sd-pam) 0 0 0 0 2023-03-15 13:25:11.381435 UTC Disabled
0xf64a35c0 385 385 351 bash 0 0 0 0 2023-03-15 13:25:11.591839 UTC Disabled
0xf5d0d600 392 392 350 sshd 0 0 0 0 2023-03-15 13:26:14.141124 UTC Disabled
0xf64a5600 395 395 1 systemd 1000 1000 1000 1000 2023-03-15 13:26:17.441770 UTC Disabled
0xf4a52b00 396 396 395 (sd-pam) 1000 1000 1000 1000 2023-03-15 13:26:17.447031 UTC Disabled
0xf3561580 409 409 392 sshd 1000 1000 1000 1000 2023-03-15 13:26:17.494809 UTC Disabled
0xf35660c0 410 410 409 bash 1000 1000 1000 1000 2023-03-15 13:26:17.554898 UTC Disabled
0xf327a040 606 606 410 su 1000 1000 0 1000 2023-03-15 13:29:18.171496 UTC Disabled
0xf3560000 607 607 606 bash 0 0 0 0 2023-03-15 13:29:24.323004 UTC Disabled
0xf4a56b80 633 633 2 kworker/u4:0 0 0 0 0 2023-03-15 13:31:16.675558 UTC Disabled
0xf4938ac0 8912 8912 2 kworker/0:1 0 0 0 0 2023-03-15 13:40:43.748058 UTC Disabled
0xf4a50000 10483 10483 2 kworker/1:0 0 0 0 0 2023-03-15 18:31:16.768512 UTC Disabled
0xf4a535c0 10538 10538 2 kworker/u4:2 0 0 0 0 2023-03-15 18:41:38.565089 UTC Disabled
0xf493a040 10585 10585 2 kworker/1:1 0 0 0 0 2023-03-15 18:52:00.932717 UTC Disabled
0xf6665600 10597 10597 2 kworker/u4:1 0 0 0 0 2023-03-15 18:55:40.101714 UTC Disabled
0xf66635c0 10603 10603 2 kworker/1:2 0 0 0 0 2023-03-15 18:57:12.843642 UTC Disabled
0xf3440000 11218 11218 607 insmod 0 0 0 0 2023-03-15 18:59:29.561172 UTC Disabled
linux.psscan.PsScan
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
❯ python3 vol.py -f ram.lime linux.psscan.PsScan
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
OFFSET (P) PID TID PPID COMM EXIT_STATE
0x1cb51bf 9027 9027 10488 rm EXIT_DEAD
0x1cb5c7f 9025 9025 10488 ip EXIT_DEAD
0x1cb673f 9028 9028 10488 chown EXIT_DEAD
0x1ddc1ff 105 105 2 scsi_eh_2 TASK_RUNNING
0x1ddccbf 241 284 1 sd-resolve TASK_RUNNING
0x1ddd77f 104 104 2 scsi_tmf_1 TASK_RUNNING
0x1dde23f 300 300 1 swapon EXIT_DEAD
0x1ddecff 56 56 2 kworker/dying EXIT_DEAD
0x1ddf7bf 101 101 2 ata_sff TASK_RUNNING
0x2063c3f 10488 10488 348 T�F2# EXIT_DEAD
0x242077f 331 331 286 setfont EXIT_DEAD
0x242123f 341 341 286 setfont EXIT_DEAD
0x2421cff 326 326 323 gzip EXIT_DEAD
0x24227bf 344 344 286 mkdir EXIT_DEAD
0x25f7c3f 262 262 2 �lK"|�i�;
�V��=� TASK_RUNNING
0x26b94bd 393 393 392 EXIT_DEAD
0x2c1083b 9028 9028 10488 v�fȑ�ry!4��
5 EXIT_DEAD
0x3c9688b 1654384128 100 0 TASK_RUNNING
<snip>
linux.pstree.PsTree
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
❯ python3 vol.py -f ram.lime linux.pstree.PsTree
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
OFFSET (V) PID TID PPID COMM
0xf491cb40 1 1 0 systemd
* 0xf4a52040 202 202 1 systemd-journal
* 0xf5d0c080 219 219 1 systemd-udevd
* 0xf5d09580 241 241 1 systemd-timesyn
* 0xf64a1580 330 330 1 systemd-logind
* 0xf64a6b80 332 332 1 rsyslogd
* 0xf64a2b00 335 335 1 dbus-daemon
* 0xf64a60c0 339 339 1 cron
* 0xf38eab00 348 348 1 dhclient
* 0xf64a0000 350 350 1 sshd
** 0xf5d0d600 392 392 350 sshd
*** 0xf3561580 409 409 392 sshd
**** 0xf35660c0 410 410 409 bash
***** 0xf327a040 606 606 410 su
****** 0xf3560000 607 607 606 bash
******* 0xf3440000 11218 11218 607 insmod
* 0xf64a4b40 351 351 1 login
** 0xf64a35c0 385 385 351 bash
* 0xf5d0ab00 374 374 1 systemd
** 0xf5d08ac0 375 375 374 (sd-pam)
* 0xf64a5600 395 395 1 systemd
** 0xf4a52b00 396 396 395 (sd-pam)
0xf4918ac0 2 2 0 kthreadd
* 0xf4919580 3 3 2 rcu_gp
* 0xf491b5c0 4 4 2 rcu_par_gp
* 0xf4918000 6 6 2 kworker/0:0H
* 0xf491a040 8 8 2 mm_percpu_wq
* 0xf491e0c0 9 9 2 ksoftirqd/0
* 0xf491eb80 10 10 2 rcu_sched
* 0xf491ab00 11 11 2 rcu_bh
* 0xf493cb40 12 12 2 migration/0
* 0xf493b5c0 14 14 2 cpuhp/0
* 0xf493c080 15 15 2 cpuhp/1
* 0xf4938000 16 16 2 migration/1
* 0xf493d600 17 17 2 ksoftirqd/1
* 0xf493e0c0 19 19 2 kworker/1:0H
* 0xf493eb80 20 20 2 kdevtmpfs
* 0xf493ab00 21 21 2 netns
* 0xf49c8000 22 22 2 kauditd
* 0xf49cd600 23 23 2 khungtaskd
* 0xf49ca040 24 24 2 oom_reaper
* 0xf49ce0c0 25 25 2 writeback
* 0xf49ceb80 26 26 2 kcompactd0
* 0xf49cab00 27 27 2 ksmd
* 0xf49ccb40 28 28 2 khugepaged
* 0xf49c8ac0 29 29 2 crypto
* 0xf49c9580 30 30 2 kintegrityd
* 0xf49cb5c0 31 31 2 kblockd
* 0xf49cc080 32 32 2 edac-poller
* 0xf4a50ac0 33 33 2 devfreq_wq
* 0xf4a51580 34 34 2 watchdogd
* 0xf4a54080 36 36 2 kswapd0
* 0xf4be8ac0 54 54 2 kthrotld
* 0xf4beab00 55 55 2 ipv6_addrconf
* 0xf64a2040 65 65 2 kstrp
* 0xf4beeb80 101 101 2 ata_sff
* 0xf4a560c0 102 102 2 scsi_eh_0
* 0xf4be8000 103 103 2 scsi_eh_1
* 0xf4becb40 104 104 2 scsi_tmf_1
* 0xf4beb5c0 105 105 2 scsi_eh_2
* 0xf64b4b40 106 106 2 scsi_tmf_2
* 0xf4a55600 108 108 2 scsi_tmf_0
* 0xf6664080 113 113 2 kworker/1:1H
* 0xf6662b00 136 136 2 kworker/0:2
* 0xf6666b80 138 138 2 kworker/0:1H
* 0xf6660ac0 166 166 2 kworker/u5:0
* 0xf6664b40 168 168 2 jbd2/sda1-8
* 0xf6660000 169 169 2 ext4-rsv-conver
* 0xf5d08000 262 262 2 ttm_swap
* 0xf5d0b5c0 263 263 2 irq/18-vmwgfx
* 0xf4a56b80 633 633 2 kworker/u4:0
* 0xf4938ac0 8912 8912 2 kworker/0:1
* 0xf4a50000 10483 10483 2 kworker/1:0
* 0xf4a535c0 10538 10538 2 kworker/u4:2
* 0xf493a040 10585 10585 2 kworker/1:1
* 0xf6665600 10597 10597 2 kworker/u4:1
* 0xf66635c0 10603 10603 2 kworker/1:2
linux.sockstat.Sockstat
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
❯ python3 vol.py -f ram.lime linux.sockstat.Sockstat
Volatility 3 Framework 2.20.0
Progress: 100.00 Stacking attempts finished
NetNS Process Name PID TID FD Sock Offset Family Type Proto Source Addr Source Port Destination Addr Destination Port State Filter
4026531992 systemd 1 1 9 0xf6211800 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000002 1 group:0x00000000 0 UNCONNECTED filter_type=socket_filter,bpf_filter_type=cBPF
4026531992 systemd 1 1 16 0xf647d200 AF_UNIX DGRAM - /run/systemd/notify 10498 - - UNCONNECTED -
4026531992 systemd 1 1 17 0xf647c900 AF_UNIX DGRAM - - 10500 - 10501 UNCONNECTED -
4026531992 systemd 1 1 18 0xf647cf00 AF_UNIX DGRAM - - 10501 - 10500 UNCONNECTED -
4026531992 systemd 1 1 19 0xf647ea00 AF_UNIX STREAM - /run/systemd/private 10502 - - LISTEN -
4026531992 systemd 1 1 23 0xf3b57600 AF_UNIX STREAM - /run/systemd/journal/stdout 13866 - 13312 ESTABLISHED -
4026531992 systemd 1 1 26 0xf647c600 AF_UNIX SEQPACKET - /run/udev/control 10509 - - UNCONNECTED -
4026531992 systemd 1 1 27 0xf647e100 AF_UNIX STREAM - /run/systemd/journal/stdout 10512 - - LISTEN -
4026531992 systemd 1 1 28 0xf647e400 AF_UNIX DGRAM - /run/systemd/journal/socket 10516 - - UNCONNECTED -
4026531992 systemd 1 1 32 0xf647de00 AF_UNIX STREAM - /run/systemd/fsck.progress 10536 - - LISTEN -
4026531992 systemd 1 1 33 0xf5cbf800 AF_NETLINK RAW NETLINK_AUDIT groups:0x00000001 1 group:0x00000000 0 UNCONNECTED -
4026531992 systemd 1 1 34 0xf647c300 AF_UNIX DGRAM - /run/systemd/journal/dev-log 10584 - - UNCONNECTED -
4026531992 systemd 1 1 35 0xf5cbc000 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000001 3202108639 group:0x00000000 0 UNCONNECTED -
4026531992 systemd 1 1 37 0xf647f300 AF_UNIX DGRAM - /run/systemd/journal/syslog 10594 - - UNCONNECTED -
4026531992 systemd 1 1 42 0xf5ce1800 AF_NETLINK RAW NETLINK_AUDIT - 4022139371 group:0x00000000 0 UNCONNECTED -
4026531992 systemd 1 1 47 0xf647f000 AF_UNIX DGRAM - - 10884 /run/systemd/journal/socket 10516 UNCONNECTED -
4026531992 systemd 1 1 48 0xf64d3300 AF_UNIX STREAM - /var/run/dbus/system_bus_socket 13414 - - LISTEN -
4026531992 systemd 1 1 49 0xf5eaf600 AF_UNIX STREAM - /run/systemd/journal/stdout 11602 - 11508 ESTABLISHED -
4026531992 systemd 1 1 50 0xf5fdcc00 AF_UNIX STREAM - /run/systemd/journal/stdout 11824 - 11161 ESTABLISHED -
4026531992 systemd 1 1 51 0xf35aa100 AF_UNIX STREAM - /run/systemd/journal/stdout 14034 - 14538 ESTABLISHED -
4026531992 systemd 1 1 57 0xf64d1e00 AF_UNIX STREAM - - 13440 /var/run/dbus/system_bus_socket 13704 ESTABLISHED -
4026531992 systemd 1 1 58 0xf39f1800 AF_UNIX STREAM - /run/systemd/journal/stdout 13803 - 13802 ESTABLISHED -
4026531992 systemd 1 1 60 0xf3902400 AF_UNIX STREAM - /run/systemd/journal/stdout 13559 - 13558 ESTABLISHED -
4026531992 systemd 1 1 61 0xf3907c00 AF_UNIX STREAM - /run/systemd/journal/stdout 13561 - 12969 ESTABLISHED -
4026531992 systemd 1 1 62 0xf390c900 AF_UNIX STREAM - /run/systemd/journal/stdout 13629 - 13628 ESTABLISHED -
4026531992 systemd-journal 202 202 3 0xf647e100 AF_UNIX STREAM - /run/systemd/journal/stdout 10512 - - LISTEN -
4026531992 systemd-journal 202 202 4 0xf647e400 AF_UNIX DGRAM - /run/systemd/journal/socket 10516 - - UNCONNECTED -
4026531992 systemd-journal 202 202 5 0xf647c300 AF_UNIX DGRAM - /run/systemd/journal/dev-log 10584 - - UNCONNECTED -
4026531992 systemd-journal 202 202 6 0xf5cbf800 AF_NETLINK RAW NETLINK_AUDIT groups:0x00000001 1 group:0x00000000 0 UNCONNECTED -
4026531992 systemd-journal 202 202 14 0xf64d0300 AF_UNIX DGRAM - - 11318 /run/systemd/notify 10498 UNCONNECTED -
4026531992 systemd-journal 202 202 17 0xf39f1800 AF_UNIX STREAM - /run/systemd/journal/stdout 13803 - 13802 ESTABLISHED -
4026531992 systemd-journal 202 202 18 0xf5eaf600 AF_UNIX STREAM - /run/systemd/journal/stdout 11602 - 11508 ESTABLISHED -
4026531992 systemd-journal 202 202 19 0xf5fdcc00 AF_UNIX STREAM - /run/systemd/journal/stdout 11824 - 11161 ESTABLISHED -
4026531992 systemd-journal 202 202 20 0xf3b57600 AF_UNIX STREAM - /run/systemd/journal/stdout 13866 - 13312 ESTABLISHED -
4026531992 systemd-journal 202 202 21 0xf35aa100 AF_UNIX STREAM - /run/systemd/journal/stdout 14034 - 14538 ESTABLISHED -
4026531992 systemd-journal 202 202 22 0xf3902400 AF_UNIX STREAM - /run/systemd/journal/stdout 13559 - 13558 ESTABLISHED -
4026531992 systemd-journal 202 202 23 0xf3907c00 AF_UNIX STREAM - /run/systemd/journal/stdout 13561 - 12969 ESTABLISHED -
4026531992 systemd-journal 202 202 24 0xf390c900 AF_UNIX STREAM - /run/systemd/journal/stdout 13629 - 13628 ESTABLISHED -
4026531992 systemd-udevd 219 219 1 0xf64d1800 AF_UNIX STREAM - - 11508 /run/systemd/journal/stdout 11602 ESTABLISHED -
4026531992 systemd-udevd 219 219 2 0xf64d1800 AF_UNIX STREAM - - 11508 /run/systemd/journal/stdout 11602 ESTABLISHED -
4026531992 systemd-udevd 219 219 3 0xf5cbc000 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000001 3202108639 group:0x00000000 0 UNCONNECTED -
4026531992 systemd-udevd 219 219 4 0xf647c600 AF_UNIX SEQPACKET - /run/udev/control 10509 - - UNCONNECTED -
4026531992 systemd-udevd 219 219 5 0xf5eacc00 AF_UNIX DGRAM - - 11582 /run/systemd/journal/socket 10516 UNCONNECTED -
4026531992 systemd-udevd 219 219 6 0xf5eac300 AF_UNIX DGRAM - - 11584 - 11585 UNCONNECTED -
4026531992 systemd-udevd 219 219 7 0xf5eaea00 AF_UNIX DGRAM - - 11585 - 11584 UNCONNECTED -
4026531992 systemd-timesyn 241 241 1 0xf647c000 AF_UNIX STREAM - - 11161 /run/systemd/journal/stdout 11824 ESTABLISHED -
4026531992 systemd-timesyn 241 241 2 0xf647c000 AF_UNIX STREAM - - 11161 /run/systemd/journal/stdout 11824 ESTABLISHED -
4026531992 systemd-timesyn 241 241 3 0xf3877c00 AF_UNIX DGRAM - - 12219 /run/systemd/journal/socket 10516 UNCONNECTED -
4026531992 systemd-timesyn 241 241 7 0xf3874900 AF_UNIX DGRAM - - 12221 - 12222 UNCONNECTED -
4026531992 systemd-timesyn 241 241 8 0xf3874c00 AF_UNIX DGRAM - - 12222 - 12221 UNCONNECTED -
4026531992 systemd-timesyn 241 241 9 0xf3875b00 AF_UNIX DGRAM - - 12223 - 12224 UNCONNECTED -
4026531992 systemd-timesyn 241 241 10 0xf3876100 AF_UNIX DGRAM - - 12224 - 12223 UNCONNECTED -
4026531992 systemd-timesyn 241 241 15 0xf38a4900 AF_UNIX STREAM - - 13422 /var/run/dbus/system_bus_socket 13703 ESTABLISHED -
4026531992 sd-resolve 241 284 1 0xf647c000 AF_UNIX STREAM - - 11161 /run/systemd/journal/stdout 11824 ESTABLISHED -
4026531992 sd-resolve 241 284 2 0xf647c000 AF_UNIX STREAM - - 11161 /run/systemd/journal/stdout 11824 ESTABLISHED -
4026531992 sd-resolve 241 284 3 0xf3877c00 AF_UNIX DGRAM - - 12219 /run/systemd/journal/socket 10516 UNCONNECTED -
4026531992 sd-resolve 241 284 7 0xf3874900 AF_UNIX DGRAM - - 12221 - 12222 UNCONNECTED -
4026531992 sd-resolve 241 284 8 0xf3874c00 AF_UNIX DGRAM - - 12222 - 12221 UNCONNECTED -
4026531992 sd-resolve 241 284 9 0xf3875b00 AF_UNIX DGRAM - - 12223 - 12224 UNCONNECTED -
4026531992 sd-resolve 241 284 10 0xf3876100 AF_UNIX DGRAM - - 12224 - 12223 UNCONNECTED -
4026531992 sd-resolve 241 284 15 0xf38a4900 AF_UNIX STREAM - - 13422 /var/run/dbus/system_bus_socket 13703 ESTABLISHED -
4026531992 systemd-logind 330 330 1 0xf64d1b00 AF_UNIX STREAM - - 13558 /run/systemd/journal/stdout 13559 ESTABLISHED -
4026531992 systemd-logind 330 330 2 0xf64d1b00 AF_UNIX STREAM - - 13558 /run/systemd/journal/stdout 13559 ESTABLISHED -
4026531992 systemd-logind 330 330 3 0xf3901800 AF_UNIX DGRAM - - 13648 /run/systemd/journal/socket 10516 UNCONNECTED -
4026531992 systemd-logind 330 330 8 0xf3970000 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000002 330 group:0x00000000 0 UNCONNECTED filter_type=socket_filter,bpf_filter_type=cBPF
4026531992 systemd-logind 330 330 11 0xf3971800 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000002 3103251597 group:0x00000000 0 UNCONNECTED filter_type=socket_filter,bpf_filter_type=cBPF
4026531992 systemd-logind 330 330 12 0xf3970800 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000002 3022121101 group:0x00000000 0 UNCONNECTED filter_type=socket_filter,bpf_filter_type=cBPF
4026531992 systemd-logind 330 330 13 0xf3973c00 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000002 2279401286 group:0x00000000 0 UNCONNECTED filter_type=socket_filter,bpf_filter_type=cBPF
4026531992 systemd-logind 330 330 14 0xf3903900 AF_UNIX STREAM - - 13681 /var/run/dbus/system_bus_socket 13705 ESTABLISHED -
4026531992 rsyslogd 332 332 3 0xf647f300 AF_UNIX DGRAM - /run/systemd/journal/syslog 10594 - - UNCONNECTED -
4026531992 rsyslogd 332 332 6 0xf3933000 AF_UNIX DGRAM - - 12992 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 in:imuxsock 332 345 3 0xf647f300 AF_UNIX DGRAM - /run/systemd/journal/syslog 10594 - - UNCONNECTED -
4026531992 in:imuxsock 332 345 6 0xf3933000 AF_UNIX DGRAM - - 12992 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 in:imklog 332 346 3 0xf647f300 AF_UNIX DGRAM - /run/systemd/journal/syslog 10594 - - UNCONNECTED -
4026531992 in:imklog 332 346 6 0xf3933000 AF_UNIX DGRAM - - 12992 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 rs:main Q:Reg 332 347 3 0xf647f300 AF_UNIX DGRAM - /run/systemd/journal/syslog 10594 - - UNCONNECTED -
4026531992 rs:main Q:Reg 332 347 6 0xf3933000 AF_UNIX DGRAM - - 12992 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 dbus-daemon 335 335 1 0xf647ed00 AF_UNIX STREAM - - 12969 /run/systemd/journal/stdout 13561 ESTABLISHED -
4026531992 dbus-daemon 335 335 2 0xf647ed00 AF_UNIX STREAM - - 12969 /run/systemd/journal/stdout 13561 ESTABLISHED -
4026531992 dbus-daemon 335 335 3 0xf64d3300 AF_UNIX STREAM - /var/run/dbus/system_bus_socket 13414 - - LISTEN -
4026531992 dbus-daemon 335 335 5 0xf3971400 AF_NETLINK RAW NETLINK_AUDIT - 0 group:0x00000000 0 UNCONNECTED -
4026531992 dbus-daemon 335 335 7 0xf399a700 AF_UNIX STREAM - - 13701 - 13702 ESTABLISHED -
4026531992 dbus-daemon 335 335 8 0xf3999200 AF_UNIX STREAM - - 13702 - 13701 ESTABLISHED -
4026531992 dbus-daemon 335 335 9 0xf38a7300 AF_UNIX STREAM - /var/run/dbus/system_bus_socket 13703 - 13422 ESTABLISHED -
4026531992 dbus-daemon 335 335 10 0xf64d3000 AF_UNIX STREAM - /var/run/dbus/system_bus_socket 13704 - 13440 ESTABLISHED -
4026531992 dbus-daemon 335 335 11 0xf3901e00 AF_UNIX STREAM - /var/run/dbus/system_bus_socket 13705 - 13681 ESTABLISHED -
4026531992 dbus-daemon 335 335 13 0xf3b55500 AF_UNIX STREAM - /var/run/dbus/system_bus_socket 13883 - 14374 ESTABLISHED -
4026531992 dbus-daemon 335 335 14 0xf35a9500 AF_UNIX STREAM - /var/run/dbus/system_bus_socket 14569 - 14568 ESTABLISHED -
4026531992 cron 339 339 1 0xf64d3900 AF_UNIX STREAM - - 13628 /run/systemd/journal/stdout 13629 ESTABLISHED -
4026531992 cron 339 339 2 0xf64d3900 AF_UNIX STREAM - - 13628 /run/systemd/journal/stdout 13629 ESTABLISHED -
4026531992 cron 339 339 4 0xf398a400 AF_UNIX DGRAM - - 12994 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 dhclient 348 348 3 0xf588e100 AF_UNIX DGRAM - - 13696 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 dhclient 348 348 6 0xf5f0f800 AF_PACKET RAW ETH_P_ALL enp0s3 - - - UNCONNECTED filter_type=socket_filter,bpf_filter_type=cBPF
4026531992 dhclient 348 348 7 0xf5fe1a00 AF_INET DGRAM UDP 0.0.0.0 68 0.0.0.0 0 UNCONNECTED -
4026531992 sshd 350 350 1 0xf39f1200 AF_UNIX STREAM - - 13802 /run/systemd/journal/stdout 13803 ESTABLISHED -
4026531992 sshd 350 350 2 0xf39f1200 AF_UNIX STREAM - - 13802 /run/systemd/journal/stdout 13803 ESTABLISHED -
4026531992 sshd 350 350 3 0xf3a886c0 AF_INET STREAM TCP 0.0.0.0 22 0.0.0.0 0 LISTEN -
4026531992 sshd 350 350 4 0xf3a95e40 AF_INET6 STREAM TCP :: 22 :: 0 LISTEN -
4026531992 login 351 351 3 0xf3ab7600 AF_UNIX DGRAM - - 13164 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 systemd 374 374 1 0xf647e700 AF_UNIX STREAM - - 13312 /run/systemd/journal/stdout 13866 ESTABLISHED -
4026531992 systemd 374 374 2 0xf647e700 AF_UNIX STREAM - - 13312 /run/systemd/journal/stdout 13866 ESTABLISHED -
4026531992 systemd 374 374 3 0xf3b54c00 AF_UNIX DGRAM - - 14349 /run/systemd/journal/socket 10516 UNCONNECTED -
4026531992 systemd 374 374 9 0xf3b50c00 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000002 374 group:0x00000000 0 UNCONNECTED filter_type=socket_filter,bpf_filter_type=cBPF
4026531992 systemd 374 374 12 0xf3b54f00 AF_UNIX STREAM - /run/user/0/gnupg/S.gpg-agent.browser 14378 - - LISTEN -
4026531992 systemd 374 374 16 0xf3b57900 AF_UNIX DGRAM - /run/user/0/systemd/notify 14368 - - UNCONNECTED -
4026531992 systemd 374 374 17 0xf3b56400 AF_UNIX DGRAM - - 14370 - 14371 UNCONNECTED -
4026531992 systemd 374 374 18 0xf3b54600 AF_UNIX DGRAM - - 14371 - 14370 UNCONNECTED -
4026531992 systemd 374 374 19 0xf3b57c00 AF_UNIX STREAM - /run/user/0/systemd/private 14372 - - LISTEN -
4026531992 systemd 374 374 20 0xf3b56700 AF_UNIX STREAM - - 14374 /var/run/dbus/system_bus_socket 13883 ESTABLISHED -
4026531992 systemd 374 374 26 0xf3b56d00 AF_UNIX STREAM - /run/user/0/gnupg/S.gpg-agent.ssh 14381 - - LISTEN -
4026531992 systemd 374 374 27 0xf3b55e00 AF_UNIX STREAM - /run/user/0/gnupg/S.gpg-agent.extra 14383 - - LISTEN -
4026531992 systemd 374 374 28 0xf3b57300 AF_UNIX STREAM - /run/user/0/gnupg/S.dirmngr 14385 - - LISTEN -
4026531992 systemd 374 374 29 0xf3b56100 AF_UNIX STREAM - /run/user/0/gnupg/S.gpg-agent 14387 - - LISTEN -
4026531992 (sd-pam) 375 375 1 0xf647e700 AF_UNIX STREAM - - 13312 /run/systemd/journal/stdout 13866 ESTABLISHED -
4026531992 (sd-pam) 375 375 2 0xf647e700 AF_UNIX STREAM - - 13312 /run/systemd/journal/stdout 13866 ESTABLISHED -
4026531992 (sd-pam) 375 375 7 0xf3b55800 AF_UNIX DGRAM - - 14344 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 sshd 392 392 3 0xf3a89440 AF_INET STREAM TCP 192.168.10.226 22 192.168.10.20 51295 ESTABLISHED -
4026531992 sshd 392 392 4 0xf39f2400 AF_UNIX DGRAM - - 13954 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 sshd 392 392 6 0xf38fbc00 AF_UNIX STREAM - - 14445 - 0 ESTABLISHED -
4026531992 sshd 392 392 7 0xf64d2d00 AF_UNIX STREAM - - 14058 - 14057 ESTABLISHED -
4026531992 systemd 395 395 1 0xf647d500 AF_UNIX STREAM - - 14538 /run/systemd/journal/stdout 14034 ESTABLISHED -
4026531992 systemd 395 395 2 0xf647d500 AF_UNIX STREAM - - 14538 /run/systemd/journal/stdout 14034 ESTABLISHED -
4026531992 systemd 395 395 3 0xf35a9b00 AF_UNIX DGRAM - - 14549 /run/systemd/journal/socket 10516 UNCONNECTED -
4026531992 systemd 395 395 9 0xf3557400 AF_NETLINK RAW NETLINK_KOBJECT_UEVENT groups:0x00000002 395 group:0x00000000 0 UNCONNECTED filter_type=socket_filter,bpf_filter_type=cBPF
4026531992 systemd 395 395 12 0xf35a8f00 AF_UNIX STREAM - /run/user/1000/gnupg/S.gpg-agent.extra 14573 - - LISTEN -
4026531992 systemd 395 395 16 0xf35a8300 AF_UNIX DGRAM - /run/user/1000/systemd/notify 14562 - - UNCONNECTED -
4026531992 systemd 395 395 17 0xf35abc00 AF_UNIX DGRAM - - 14564 - 14565 UNCONNECTED -
4026531992 systemd 395 395 18 0xf35ab600 AF_UNIX DGRAM - - 14565 - 14564 UNCONNECTED -
4026531992 systemd 395 395 19 0xf35a9e00 AF_UNIX STREAM - /run/user/1000/systemd/private 14566 - - LISTEN -
4026531992 systemd 395 395 20 0xf35aaa00 AF_UNIX STREAM - - 14568 /var/run/dbus/system_bus_socket 14569 ESTABLISHED -
4026531992 systemd 395 395 26 0xf35ab000 AF_UNIX STREAM - /run/user/1000/gnupg/S.dirmngr 14576 - - LISTEN -
4026531992 systemd 395 395 27 0xf35ab900 AF_UNIX STREAM - /run/user/1000/gnupg/S.gpg-agent.browser 14578 - - LISTEN -
4026531992 systemd 395 395 28 0xf35aa400 AF_UNIX STREAM - /run/user/1000/gnupg/S.gpg-agent 14580 - - LISTEN -
4026531992 systemd 395 395 29 0xf35ab300 AF_UNIX STREAM - /run/user/1000/gnupg/S.gpg-agent.ssh 14582 - - LISTEN -
4026531992 (sd-pam) 396 396 1 0xf647d500 AF_UNIX STREAM - - 14538 /run/systemd/journal/stdout 14034 ESTABLISHED -
4026531992 (sd-pam) 396 396 2 0xf647d500 AF_UNIX STREAM - - 14538 /run/systemd/journal/stdout 14034 ESTABLISHED -
4026531992 (sd-pam) 396 396 7 0xf35aad00 AF_UNIX DGRAM - - 14544 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 sshd 409 409 3 0xf3a89440 AF_INET STREAM TCP 192.168.10.226 22 192.168.10.20 51295 ESTABLISHED -
4026531992 sshd 409 409 4 0xf39f2400 AF_UNIX DGRAM - - 13954 /run/systemd/journal/dev-log 10584 UNCONNECTED -
4026531992 sshd 409 409 5 0xf64d0c00 AF_UNIX STREAM - - 14057 - 14058 ESTABLISHED -
4026531992 sshd 409 409 6 0xf38fbc00 AF_UNIX STREAM - - 14445 - 0 ESTABLISHED -
4026531992 su 606 606 3 0xf3606d00 AF_UNIX DGRAM - - 14322 /run/systemd/journal/dev-log 10584 UNCONNECTED -
Conclusiones
Como ya hemos visto el análisis de memoria RAM en linux nos proporciona información sobre el estado de las tareas que se están ejecutando en el sistema.
En este caso se ha hecho un reapaso de los comandos básicos de Volatility 2 y 3 para realizar análisis de memoria RAM.
Para saber como crear mapas de memoria RAM en linux podemos consultar el post de Creación de mapas de memoria RAM en linux.
This post is licensed under CC BY 4.0 by the author.
